Model: FY-4250B
Tube Diameter: 40~250mm
Tube Thickness: 1~20mm
Working Speed: 3~20m/min

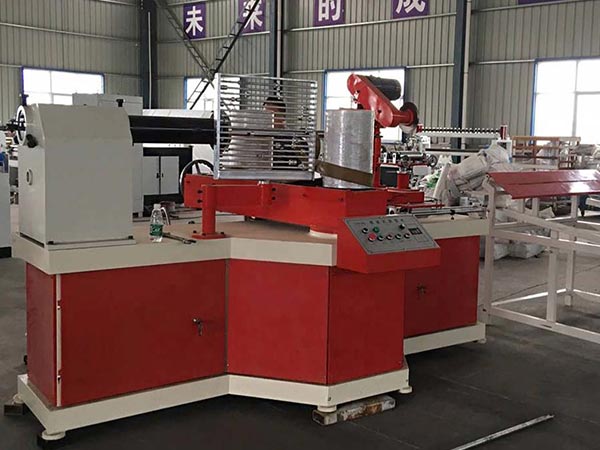

FY-4250B paper core tube making machine is mainly used for making paper tube. The tubes made can be used as core of toilet paper roll.We have different model of paper core machine for choice, can make paper tube with different diameter and thickness. The finished tube can be cut and discharged automatically. Infrared and automatic transmission make cutting length more accurate.
1.Paper core tube making machine
2.Kraft paper slitting machine
--Adopt thick steel plate to ensure the tenacity and low vibration.
--Adopt the vector-type and high-torque frequency control.
--Adopt the CNC Synchronous cutting system.The cutting stand is driving by the precise ball screw and servo motor.
--Pulse fixed-length control to ensure the consistency of cutting length in different operating speed of the main machine.
--PLC control system is adopted to improve the cutting response speed and ensure the accurate control of cutting length.
-- Adopt new type operation panel and big size color touch screen.
-- Adopt Multi-function bottom paper supply device and the infrared hunting gear to make the machine automatically shut-down if it breaks or loses paper.
-- Linkage integer with all-electric control including whole paper supply rack , gumming rack and paper guide device.
-- Adopt Modular electrical layout design to follow the maintenance accessibility .
|
Machine Model |
FY-4250B |
|
Tube Layer |
3~21 Layers |
|
Tube Diameter |
40~250mm |
|
Tube Thickness |
1~20mm |
|
Cutting Method |
Single Round Knife Cutting Without Resistance |
|
Gluing Method |
Single/Double Side Gluing |
|
Working Speed |
3~20m/min |
|
Control System |
Variable Frequency Speed Control |
|
Main Power |
11KW |
|
Dimension |
3800mm×2000mm×1950mm |
|
Weight |
3500kg |
|
Voltage |
380V / 50Hz / 3-Phase |
|
Warranty |
One Year & Long-term Technical Service |
